RF Product > Connectors > Standard > 1/2 7/16 Din - Male

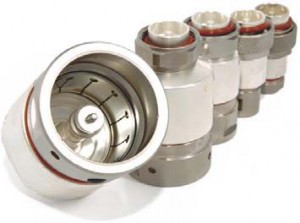

1/2 7/16 Din - Male

DESCRIPTION

Standard RF Connector for coaxial feeder cable.

Precision manufactured for low insertion loss and superior waterproofing.

LEAD TIME IN WEEKS

1 Week(s)

Connector Type

7/16 Din - Male

RF Perforrmance

Impedance

50 Ω

Frequency Range

0-2.5 GHz

VSWR (0-1 GHz)

≤1.10

VSWR (1-2.5 GHz)

≤1.15

Insertion Loss

≤0.1

IM3

≥155 dBc

Electrical Rating

Voltage Rating

4000 V

Insulation Resistance

≥ 10000 MΩ

Center Contact Resistance

≤ 0.4 mΩ

Outer Contact Resistance

≤ 1.5 mΩ

Environmental

Temperature

-45 - +85 C
